Spinel Ball

You are here:

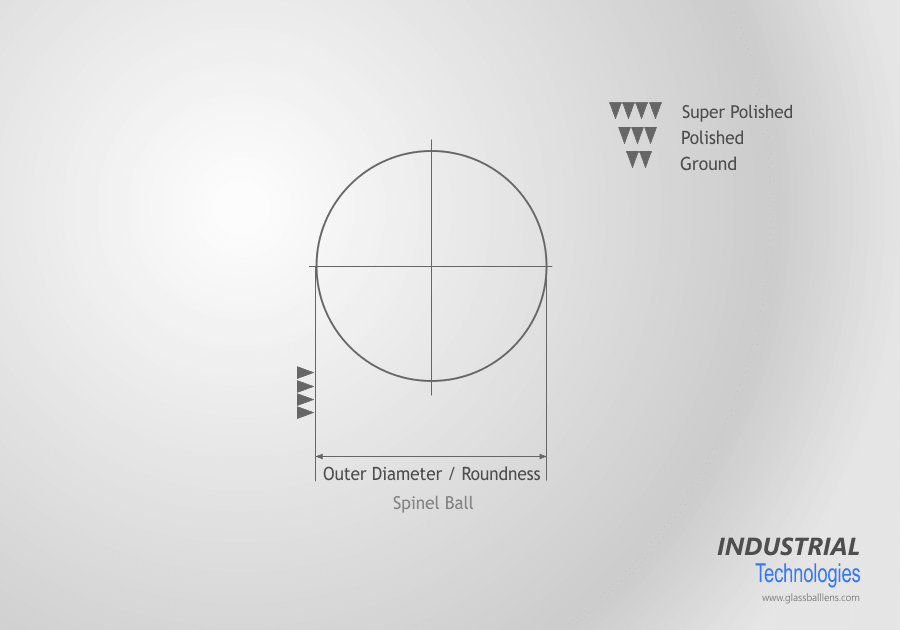

We manufacture Spinel balls in diameters ranging from 0.30mm to 3.0mm

Spinel is also a well known single crystal being used in the optical industry. The main advantage being that spinel is a cubic single crystal.

Spinel is a very hard material and its hardness is 8 on the mohs scale.

The refractive index of Spinel material is 1.727 which makes it very interesting to be used as a Ball lens for optical telecom products. In addition to the optical properties of Spinel, it is also wear resistant and can withstand severe chemical corrosion.

In terms of visual appearance, Our Spinel Ball can have a surface finish of No Scratch/Dig at 20x Magnification level (depending on the diameter of the Spinel ball lens).

Our Spinel raw material is produced by one of the oldest and most reliable supplier in the Swiss Industry.

Each and every Spinel ball is checked 100% for Size, Accuracy, Polish level and Cleaning before delivery.

All Spinel Ball products are cleaned and packed in Class 100 clean room area.

Ball Lens Products from other materials

Glass Ball Lens / Glass Ball

Glass Ball Lens / Glass Ball

We Manufacture Glass ball lenses range in diameter from 0.40mm to 8.0mm.

More info

Half Ball Lens / Hemispheres

Half Ball Lens / Hemispheres

Half ball lenses are made from a wide variety of optical glasses with refractive index ranging from 1.50 to 2.10.

More info

Low Tg Ball Lens

Low Tg Ball Lens

Industrial Technologies manufactures Low Tg ball lenses range in diameter from 0.40mm to 8.0mm.

More info

High Index Glass Ball

High Index Glass Ball

With higher coupling efficiency required for Transmitters and Receivers, it is becoming more and more popular.

More info

Ruby Ball

Ruby Ball

Ruby is one of hardest known material with consistent quality available on a commercially economical scale.

More info

Saphire / Sapphire Ball

Saphire / Sapphire Ball

Sapphire is one of hardest known material with consistent quality available on a commercially economical scale.

More info

Spinel Ball

Spinel Ball

Spinel is also a well known single crystal being used in the optical industry. The main advantage being that spinel is a cubic single crystal.

More info

Ceramic Ball

Ceramic Ball

Alumina oxide balls resist corrosion and abrasion extremely well and maintain dimensional stability at temperatures up to 1734ºC (3180 ºF).

More info

Cubic Zirconia Ball

Cubic Zirconia Ball

The high refractive index of Cubic Zirconia material makes it very interesting to be used as a Ball lens for optical telecom products.

More info

Looking for Ball Lens? Submit your requirements get a free Quote
