Manufacturing Process of Ball Lens and Half Ball Lens

You are here:
  • Home
  • Technical Resources
  • Ball Manufacturing process

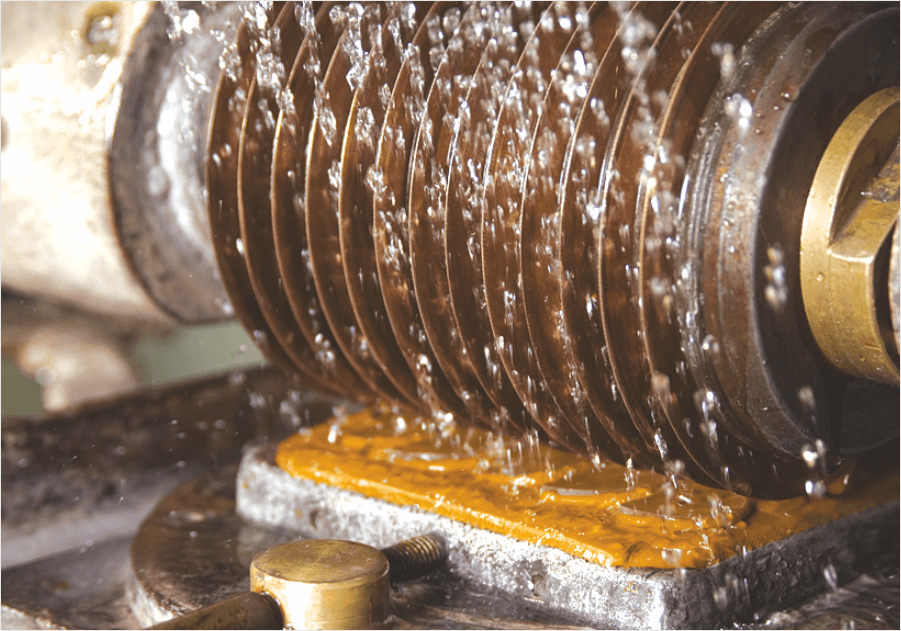

Raw Material Cutting for Ball Lens

Raw Material Cutting for Ball Lens

Starting from slicing of raw material on our extremely precise CNC machines to making the finish Ball Lens and Half Ball Lens, all Operations are done in-house in our most modern manufacturing facility equipped with Swiss machines and instruments and following international quality norms.

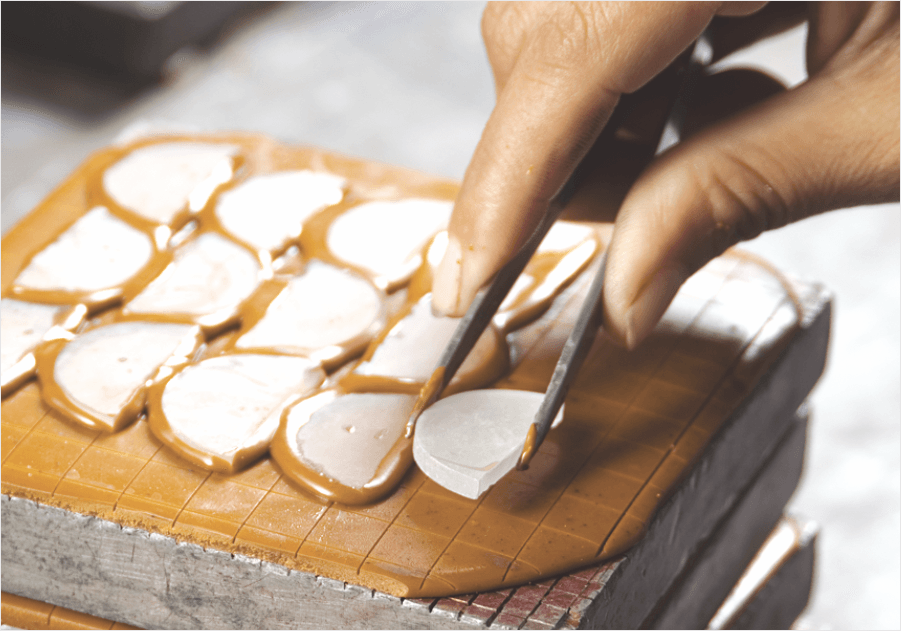

Raw Material Cutting for Ball Lens

Raw Material Cutting for Ball Lens

All incoming Ball Lens raw material is first checked to meet their quality specifications and are then cut in different shapes and size depending on the type and size of the ball lens or half ball lens to be manufactured from it.

Precise cutting with accurate machines and cutting tools ensure higher yields from raw materials resulting in competitive pricing of our ball lens and half ball lens.

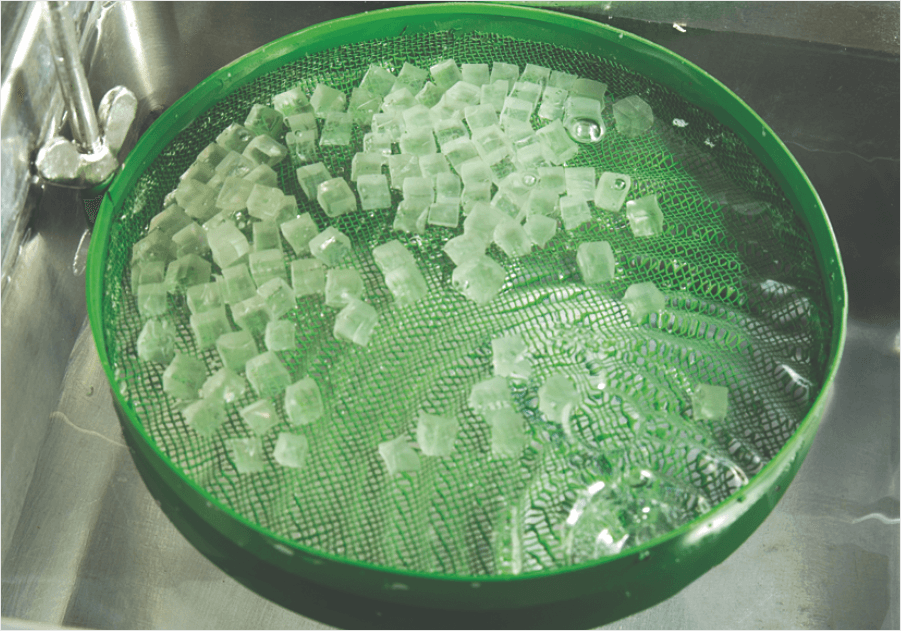

Ultrasonic Cleaning of Ball lens raw materials

Ultrasonic Cleaning of Ball lens raw materials

Proper cleanliness and care is taken at every stage of manufacturing process with ultrasonic cleaning facility to ensure defect free Ball Lens and Half Ball Lens meeting customer needs on time.

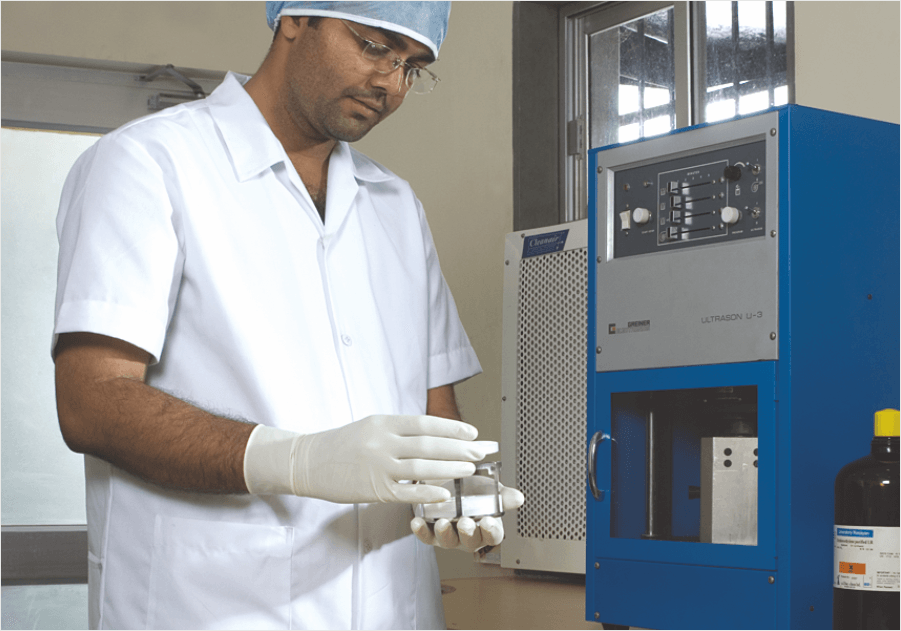

Class 100 Clean room for Ball Lens

Class 100 Clean room for Ball Lens

A fully automatic cleaning process in a CLASS 100 Clean room facility pampers the finished Ball Lens & Half Ball Lens and gives the honour of the perfect quality to the finished product.

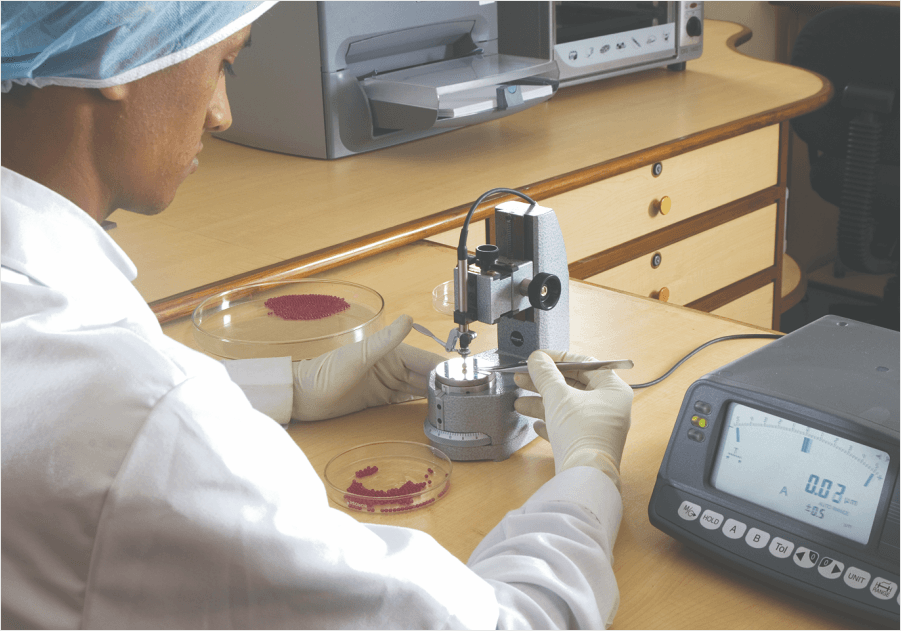

Quality Check of Ball lens

Quality Check of Ball lens

The finished ball lens and half ball lens, confident of its ability to perform and dreaming of bringing a smile on customers face will undergo the final quality check with the world’s best measuring instruments.

Ball Lens Products

Glass Ball Lens / Glass Ball

Glass Ball Lens / Glass Ball

We Manufacture Glass ball lenses range in diameter from 0.40mm to 8.0mm.

More info

Half Ball Lens / Hemispheres

Half Ball Lens / Hemispheres

Half ball lenses are made from a wide variety of optical glasses with refractive index ranging from 1.50 to 2.10.

More info

Low Tg Ball Lens

Low Tg Ball Lens

Industrial Technologies manufactures Low Tg ball lenses range in diameter from 0.40mm to 8.0mm.

More info

High Index Glass Ball

High Index Glass Ball

With higher coupling efficiency required for Transmitters and Receivers, it is becoming more and more popular.

More info

Ruby Ball

Ruby Ball

Ruby is one of hardest known material with consistent quality available on a commercially economical scale.

More info

Saphire / Sapphire Ball

Saphire / Sapphire Ball

Sapphire is one of hardest known material with consistent quality available on a commercially economical scale.

More info

Spinel Ball

Spinel Ball

Spinel is also a well known single crystal being used in the optical industry. The main advantage being that spinel is a cubic single crystal.

More info

Ceramic Ball

Ceramic Ball

Alumina oxide balls resist corrosion and abrasion extremely well and maintain dimensional stability at temperatures up to 1734ºC (3180 ºF).

More info

Cubic Zirconia Ball

Cubic Zirconia Ball

The high refractive index of Cubic Zirconia material makes it very interesting to be used as a Ball lens for optical telecom products.

More info

Micro Ball

Micro Ball

We Manufacture Micro ball range in diameter from 0.40mm to 8.0mm.

More info

Micro Ball Lens

Micro Ball Lens

We Manufacture Micro ball Lens range in diameter from 0.40mm to 8.0mm.

More info

Glass Rods

Glass Rods

We manufacture glass rods from diameter ranging from 0.60mm to 8.00mm in length ranging from 5.00mm to 100.00mm.

More info

Glass Rod Preforms

Glass Rod Preforms

Glass rods can be used as preforms for glass molding application as well.

More info

Rod Preforms

Rod Preforms

Rod Preforms are manufacture from renowned optical glass material makers like OHARA, HIKARI, SUMITA, SCHOTT, etc.

More info

Quartz Ball Lens

Quartz Ball Lens

Quartz ball lens with good UV and IR transmission is widely used for focusing and coupling light into and out of the fibre.

More info

AR coated ball lens

AR coated ball lens

Our AR coated ball lenses are precisely & uniformly coated all over the surface.

More info

Looking for Ball Lens? Submit your requirements get a free Quote
