Glass Rods

You are here:

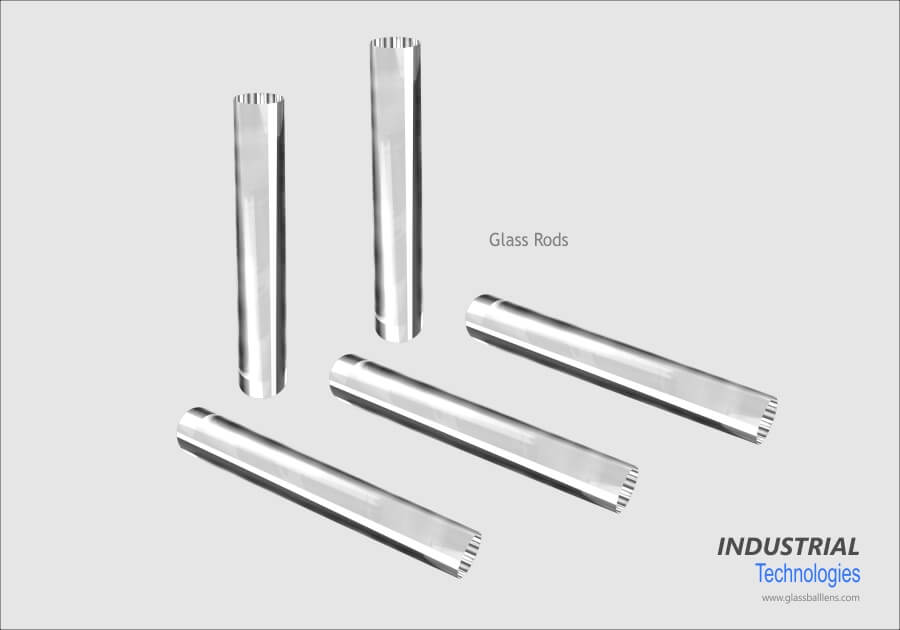

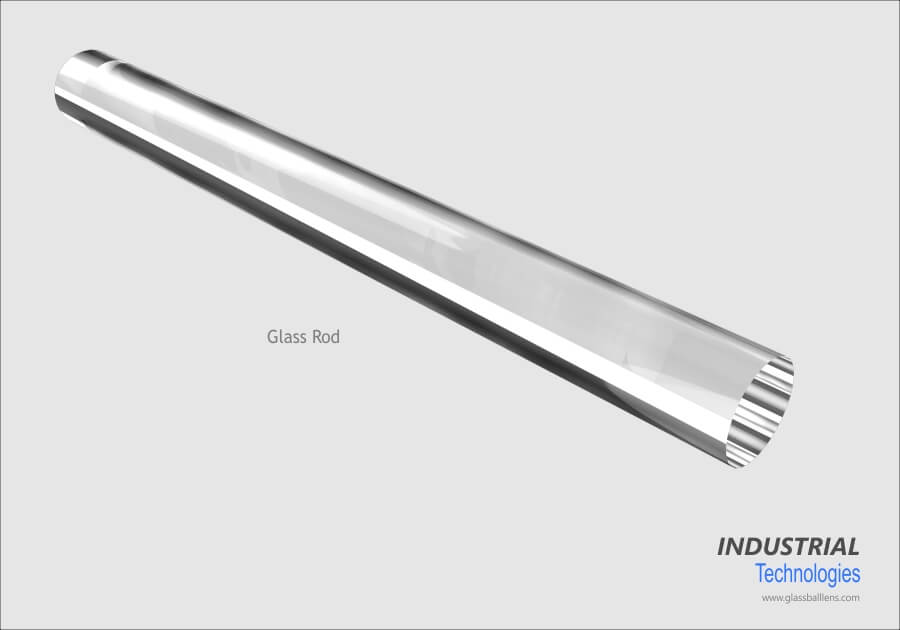

Glass Rods manufactures from a wide variety of Optical glasses.

Glass rods are being manufacture by us from diameter ranging from 0.60mm to 8.00mm in length ranging from 5.00mm to 100.00mm.

Our glass rods can be achieve a very high level of surface finish depending on the application of the product. A surface finish of Ra=0.2um can be achieved in our glass rods.

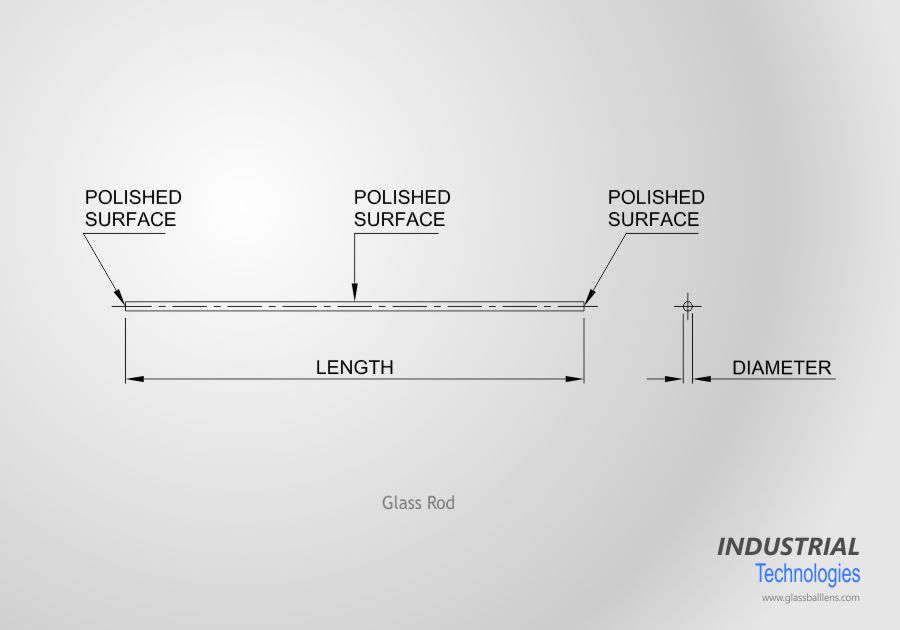

The diameter and both flat side of glass rod can be polished based on customer requirement.

In terms of visual appearance, our glass rods can have a polish level of 20/10 scratch dig.

The optical glasses used for making these Glass Rods are purchased from various renowned optical glass material makers like Ohara, Sumita, Schott, Hikari, etc. which have a strict control on the nd and vd value of the glasses.

Glass rods can be used as preforms for glass molding application as well as rod lens.

Standard Specification of our Glass Rods:

  • Tolerance on Glass Rod Diameter

    < 0.005mm

  • Tolerance on Glass Rod Length

    < 0.05 mm

  • Surface finish of glass rod

    < 0.20 um

  • All Glass Rods are cleaned and packed

    in Class 100 clean room area.

  • Polish Level of glass rod

    20/10 Scratch Dig.
