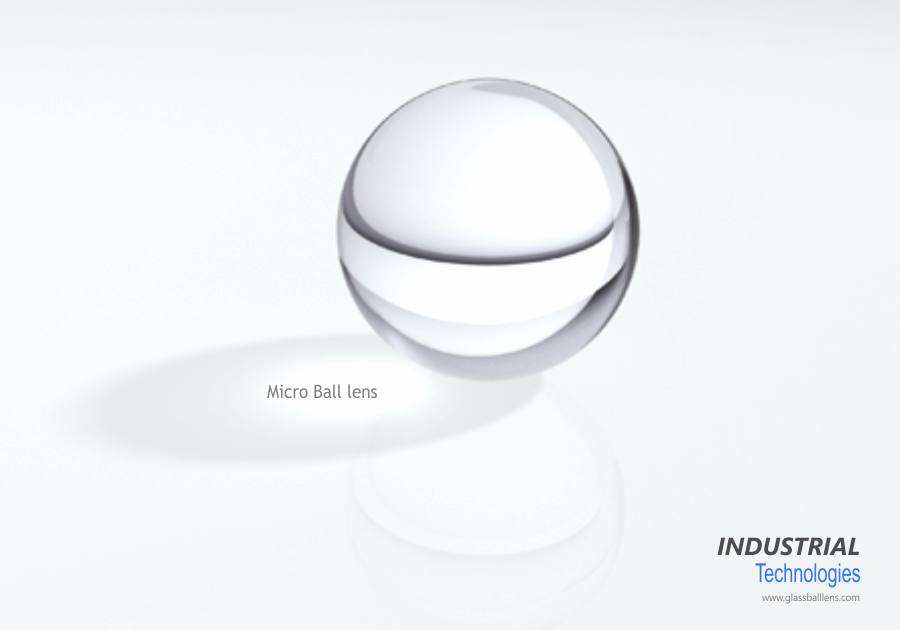

Industrial Technologies made Micro Ball Lens from a wide variety of Optical glasses with refractive index ranging from 1.50 to 2.10.
We Manufacture Micro Ball Lens range in diameter from 0.40mm to 8.0mm.
They can achieve a very high level of surface finish depending on the application of the product. Our Micro Ball Lens can achieve a surface finish of Ra = 1.2nm.
In terms of visual appearance, Our Micro Ball Lens can have a surface finish of No Scratch/Dig at 20x Magnification level (depending on the diameter of the Micro Ball Lens).
The optical glasses used for making these Micro Ball Lenses are purchased from various renowned optical glass material makers like Ohara, Sumita, Schott, etc. which have a strict control on the nd and vd value of the glasses.
Micro Ball Lenses are used to improve signal coupling between Emitters, Fibres, Transmitters, Receivers and Detectors depending on the application.

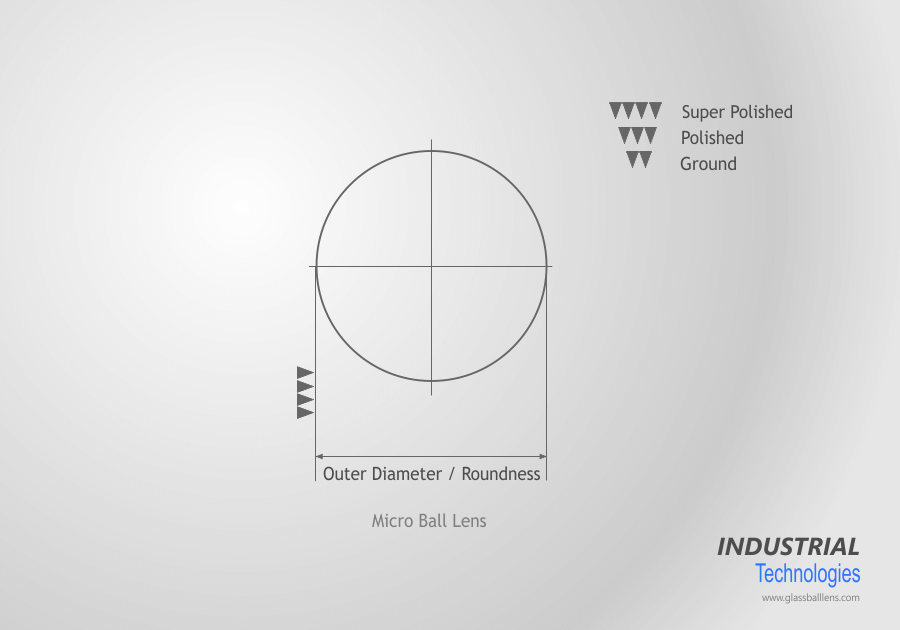

Standard Specification of our Micro Ball Lenses:
Looking for Ball Lens? Submit your requirements get a free Quote
